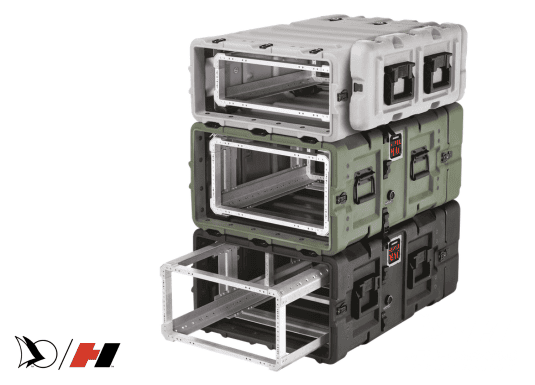

SuperMAC
Shock and Vibration Protection in a Smaller Width
The SuperMAC™ case delivers superior protection in a compact design. Featuring a 19" (48 cm) wide, 24" (61 cm) deep EIA standard rack, it maximises space while ensuring medium-duty shock and vibration protection.
The optional Lock ‘N Load removable rack slides open like a file drawer for full access, making it ideal for tight spaces where a Classic Rack case won’t fit.
SHOCK / VIBRATION SYSTEM
Shock Isolation Mounts with an Extruded Aluminum tapped rack frame with our "Dog Ear" corner and our heavy-duty rubber boot shock that is inserted into the case body at the corners to provide a flexible, shock absorbing attachment for the rack frame. Frame can be tapped Standard (SAE) or Metric (M6).
SPECIFICATIONS
| Sizes | 3U, 4U, 5U, 6U, 7U, 9U, 11U, and 14U |
| G-Rating | 40 - 70 |
| Payload | 11,3 to 56.7 kg 56.7 kg to 90.7 kg |
| Sway Space | 25 mm sway space for the ability to decelerate shock |
| Base Features | » Colour: Grey (133) » Black Carbon Steel Non-Locking Catch-and-Strike Hardware (HCB) » Eight (8) Plastic Comfort Grip Handles on front and back lids and on each side of the case body » Heavy Duty Reinforced Extruded Aluminum Rack Frame with patented “Dog Ear” reinforced corners » Lid Hangers » Mould-In Edge Casters on 127 mm Lid » Tapped Standard (SAE) or Metric (M6) |
| Customisation | SuperMAC™ cases are fully configurable and made to order using the list of options. They can also be customised by our Technical Sales solution team. |
