Classic Rack
Maximum Shock and Vibration Protection

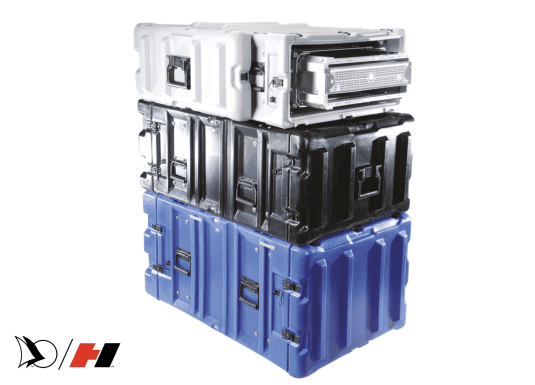

The Classic Rack Case is a durable, roto-moulded solution featuring a 19” wide EIA standard rack with multiple depth options, including 17”, 18”, 20”, 23”, 25”, 28”, and 33”.
Engineered for extreme durability, Peli’s Classic Rack Cases have proven their strength in the field, safeguarding delicate equipment during transport and storage. Precision-tuned elastomeric shock mounts deliver superior protection against shock and vibration, ensuring the security of mission-critical electronics.
SHOCK / VIBRATION SYSTEM
Cylindrical Shock Mounts installed on an Extruded Aluminum tapped rack frame with "Dog Ear" corner . Shock mounts attach to metal reinforcement rails that run the full length of each corner of the case body. Frame can be tapped Standard (SAE) or Metric (M6). This system provides superior shock and vibration protection.
SPECIFICATIONS
| Sizes | 3U (4U), 4U (5U), 5U (6U), 6U (7U), 7U (8U), 9U (10U), 10U, 11U (12U), 14U (15U), 21U (22U), 26U (27U). "(U)" is same case size with 1U added to the frame. 2" and 5" lid options |
| G-Rating | 15 - 30 |
| Payload | 8-shock mounts: 9.1 kg to 77 kg. 16-shock mounts: 72.6 kg to 154 kg. Requires heavy duty shock kit. |
| Sway Space | 50.8 mm sway space for maximum ability to decelerate shock forces and provide airflow |
| Base Features | » Colour: Grey (133) » Black Carbon Steel Non-Locking Catch-and-Strike Hardware (HCB) » Four (4) Black Carbon Steel Handles » Heavy Duty Reinforced Extruded Aluminum Rack Frame with patented "Dog Ear" reinforced corners » Tapped Standard (SAE) or Metric (M6) |
| Customisation | Classic Rack cases are fully configurable and made to order. They can also be customised by our Technical Sales solution team. Call if you need a 1U extension to any of these standard U sizes. |
