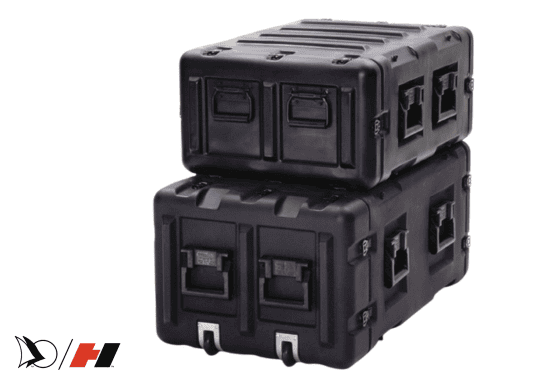

MAC Rack
Impact Protection in a Smaller, Heavy-Duty Form Factor
The MAC Rack™ case offers reliable protection in a low-visibility, roto-moulded design. With a 19" (48 cm) wide EIA standard rack in 20" (51 cm) or 24" (61 cm) depths, it maximises space without compromising durability.
Featuring a shock-mounted rack and reduced sway space, it safeguards less fragile equipment from shock, vibration, moisture, and impact—ideal for demanding deployments.
SHOCK / VIBRATION SYSTEM
Cylindrical Shock Mounts installed on a strong light-weight extruded aluminum rack frame with a "Dog Ear" corner. Shock mounts attach directly to a moulded-in shoulder on the body of the case. Frame can be tapped Standard (SAE) or Metric (M6).
SPECIFICATIONS
| Sizes | 3U ,4U, 5U, 6U, 7U, 9U, 11U, 12U, and 14U 2" and 5" lid options |
| G-Rating | 50 - 80 |
| Payload | 8-shock mounts: 10.9 kg to 45.4 kg 16- shock mounts: 45.4 kg to 90.7 kg |
| Sway Space | 21 mm sway for the ability to decelerate shock |
| Base Features | » Colour: Grey (133) » Black Carbon Steel Non-Locking Catch-and-Strike Hardware (HCB) » Eight (8) Spring Loaded Stainless Steel Black Handle (SSB) under 5U. Eight (8) plastic handles 6U and higher » Heavy Duty Reinforced Aluminum Rack Frame » Mould-In Edge Casters on 127 mm Lid » Tapped Standard (SAE) or Metric (M6) » Standard Labeling |
| Customisation | MAC Rack™ cases are fully configurable and made to order using the list of options. They can be customised by our Technical Sales solution team. |
